SEPECAT Jaguar - Profile Drawings

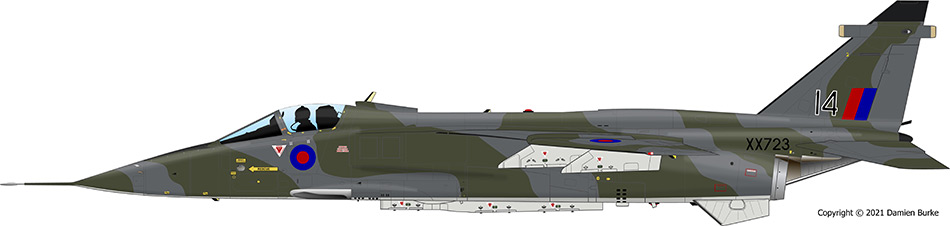

Jaguar GR.1 XX723 / 14, Jaguar OCU, RAF Lossiemouth, June 1974; Damien Burke
Original fit - no laser nose
Original green, dark sea grey and light aircraft grey scheme
Jaguar GR.1A XX754, JagDet, Muharraq, November 1990; Damien Burke
Pre-Op Granby fit; drop tanks, Sidewinder acquisition rounds, Phimat, AN/ALQ-101(V)-10
Overall desert pink scheme for 1991 Gulf War.
In memory of Flt Lt Keith Collister, killed in training in this aircraft on 13th November 1990

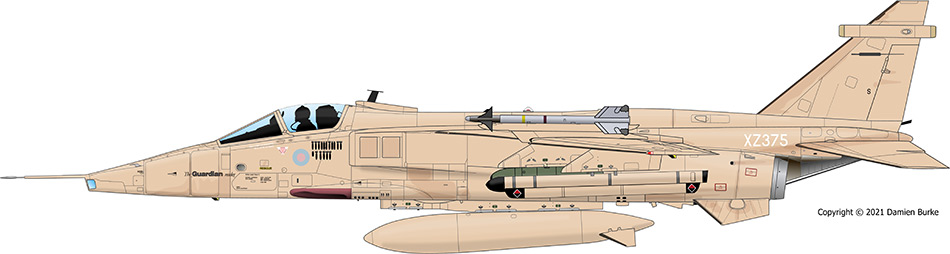

Jaguar GR.1A XZ375 / S, JagDet, Muharraq, February 1991; Damien Burke
Op Granby fit (Have Quick); drop tanks, AIM-9L Sidewinder, Phimat, AN/ALQ-101(V)-10, CRV-7 rocket pods
Overall desert pink scheme for 1991 Gulf War.
"The avid Guardian reader" flown by Sqn Ldr Mike Rondot

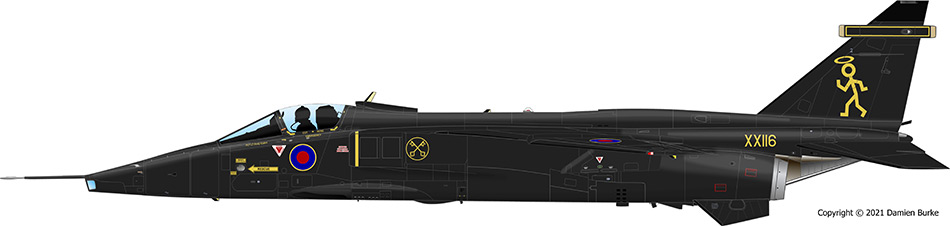

Jaguar GR.1A XX116, 16(R) Squadron, RAF Lossiemouth, 1993-1995; Damien Burke
Early equipment fit; clean display fit of just outer pylons
'Black Cat' display scheme as flown by Flt Lt Gary Miller (1993) and Flt Lt Andy Cubin (1994/95)

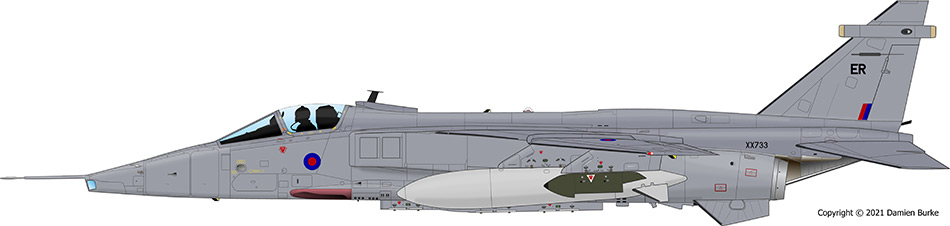

Jaguar GR.1B XX733 / ER, 41 Squadron, RAF Coltishall, January 1996; Damien Burke
Late equipment fit (GPS, Have Quick); drop tanks, CBLS
Final RAF scheme of dark sea grey topsides over dark camouflage grey
In memory of Flt Lt Greg Noble, killed in a takeoff accident in this aircraft on 23rd January 1996
Jaguar GR.3 XX103 / FP, 41 Squadron, RAF Coltishall, September 2002; Damien Burke
Late equipment fit (GPS, Have Quick); drop tanks
Final RAF scheme of dark sea grey topsides over dark camouflage grey

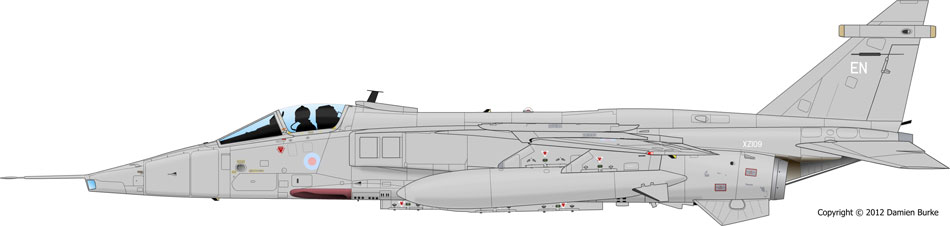

Jaguar GR.3 XZ109 / EN, 6 Squadron, RAF Coltishall, February 2003; Damien Burke
Late equipment fit (GPS, Have Quick); drop tanks
Temporary ARTF grey scheme applied for expected participation in Op Telic

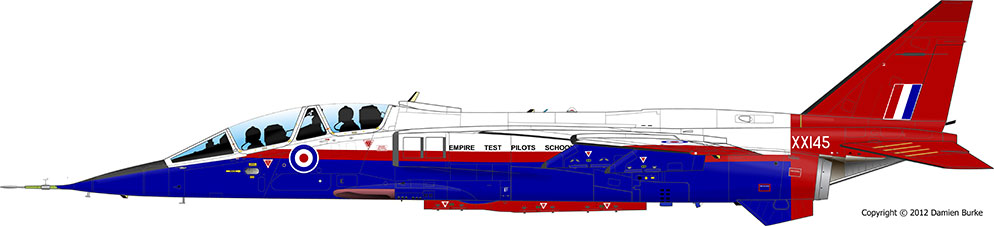

Jaguar T.2A XX145, MoD Boscombe Down, 2004; Damien Burke
Empire Test Pilots School 'raspberry ripple' scheme

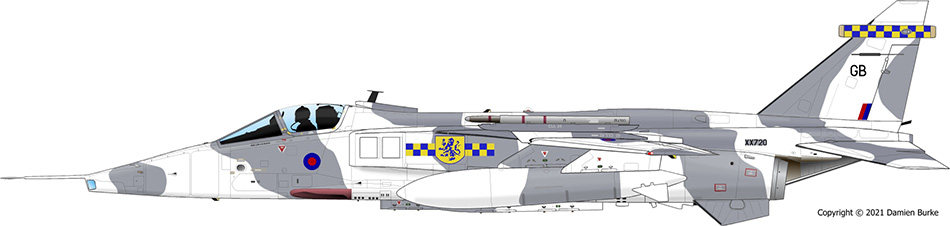

Jaguar GR.3A XX720 / GB, 54 Squadron, RAF Coltishall, January 2005; Damien Burke
Final equipment fit (GPS, Have Quick, HMS); drop tanks and Sidewinder acquisition rounds
Snow cat - white paint applied over final RAF scheme of dark sea grey topsides over dark camouflage grey
Jaguar GR.3A XX112 / EA, 6 Squadron, RAF Coningsby, April 2007; Damien Burke
Final equipment fit (GPS, Have Quick, HMS); drop tanks and Sidewinder acquisition rounds
Final RAF scheme of dark sea grey topsides over dark camouflage grey
Jaguar GR.1A XX741 / EJ, 6 Squadron, Bentwaters Cold War Museum, 2014; Damien Burke
Standard RAFG scheme of dark sea grey and dark green wraparound camouflage
Jaguar T.4 284, 104 Squadron, Irish Air Corps, Baldonnel, 2021; Damien Burke
Advanced jet trainer scheme of Medium Sea Grey over Light Aircraft Grey with dayglo accents
